Interpreting EyeQuant Results

This article is intended to help you understand the various EyeQuant results, and ways to interpret them.  It also includes a few helpful hints and recommendations.  For help with a specific result, or to get more detailed information,  send us an email!

To jump to a particular topic, click on one of the following links:

Different Analysis Types

Perception Map

Attention Map

Hot Spots

Regions of Interest

Clarity Score

Clarity Map

Excitingness Score


Different Analysis Types

EyeQuant delivers 3 types of analyses in seconds:

  • Visual Attention
  • Visual Clarity
  • Emotional Impact (Excitingness)

EyeQuant delivers predictions for these three types of analyses based on the first 3 seconds of visitors landing on a page.  The results represent what is likely to be within the  foveal view, or direct sight, in those first few seconds.

Back to top

Perception Map

Here's an example of the Perception Map results for H&M.

The Perception Map is based Visual Attention data.  This map illuminates content which is either seen or missed by visitors in the first few seconds of landing on a page.  The Perception Map is like a spotlight tool; it highlights the elements which users see right away.  Areas which aren't highlighted are "missed".

The perception map is a great way to determine whether or not your page effectively directs user attention to important or relevant content.  Important content is ultimately driven by your specific design's objectives, but we've devised a good framework for determining which content is the most relevant called, the 3Ws Approach.
3Ws Approach
  • What is this page about? (establish relevance)
  • Why should the user care? (convey a value proposition)
  • Where should they go next? (give a call to action)
If your 3 Ws are not visible according to the perception map, this presents a clear optimization opportunity.

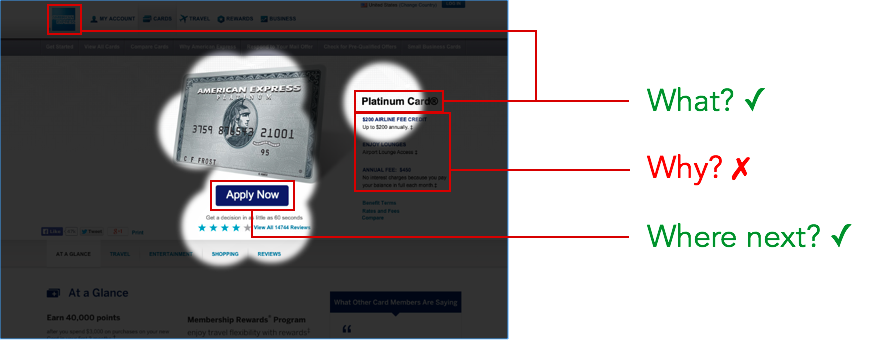

Here's an example:
To improve the above example, American Express should make the value proposition, or incentive for this offer, more visible and prominent on the page.

Back to top

Attention Map

Here's an example of the Attention Map results for Adidas:

The Attention Map is also based on Visual Attention data.  This heat map gives us a more granular perspective of which content receives the most attention.  With this result, you can easily determine if the elements receiving the most attention are in line with your design goals.  Warmer (red) areas have the most visibility.  Please note that the Attention Map predicts fixation volume (most seen), not fixation duration (attention length).

Here's a tip:  Think of attention as a finite budget.  Make sure you're spending that budget wisely, and leveraging attention towards the most relevant content.

In the above example, the majority of the attention budget is spent on the images, instead of the CTAs.  This could indicate an area for improvement.

Back to top

Hot Spots

Here's an example of the Hot Spots results for Mercedes:

The Hot Spots map is also based on Visual Attention data.   This map is a similar perspective as the Perception Map, but the magenta circles represent the 10 different focal points.  The center of each circle is a focal point, and the size of the circle represents the intensity of that focal point.  The larger the circle, the more visible the focal point.  With Hot Spots, you can create a visual hierarchy, and better make sure that the most visible focal points are in line with your design objectives.

In the example above, we can see that the hero image captures the three biggest focal points.  That may not be in line with the objectives of this particular design.

Back to top

Regions of Interest

Here's an example of the Regions of Interest results for Virgin Atlantic:

The Regions of Interest is a tool for measuring the specific visibility of different regions, based on Visual Attention Data.  With this tool, you can actually measure how eye-catching certain regions are with quantitative data.  The specific visibility is calculated by comparing the selected area to the average visibility of the entire design.  When you highlight a region, EyeQuant measures the average saliency of the pixels within the selected area as compared to the average saliency for all pixels on the page.  This means that your score can be above 100%, and can be negative (below 0%).

You can add new regions, adjust the size of each region, move them around the design, and even rename the regions.  It's important to use Regions of Interest as a comparison tool.  Either to compare different regions on a page to create a visual hierarchy (as depicted above), or to compare similar elements across different iterations.  For instance, take a look at the Spotify example below:

In this example, we can see that by increasing the contrast of a specific element in the example iteration, the new CTA button is 3x more visible than before.  This is a great tool for communicating design decisions because you can use quantitative data to showcase how much more, or less, visible specific elements are when modified.

Back to top

Clarity Score

The Clarity Score is an instant design metric based on Visual Clarity data.  It's based on large-scale studies with thousands of human raters and represents how a large group of users would judge the clarity of your visual design. It instantly scores a design for clarity in an objective way, providing a rating between 0 to 100 where 50 represents the average page on the internet.  A score of 0 indicates an extremely cluttered and busy design, whereas a score of 100 means your design is extremely clean and clear, or perhaps blank!  Please note that EyeQuant is strictly evaluating the clarity of the design only, not the clarity of your content or marketing.

In the following examples, we can see to extreme examples of Clarity Scores:

Generally speaking, cleaner and clearer designs tend to be more successful than cluttered designs.  Aim for higher than average Clarity scores, without compromising content.  Clarity is important.  If your content is too cluttered, you may be losing visitor attention.  Cleaner, clearer designs make it easier for customers to find what they're looking for, and reduces their cognitive load.  Here are some points to consider:

  • Page Type: some types of pages are necessarily more cluttered than others because they contain more content. For example, a score of 60 could be quite normal for an eCommerce product detail page, but would be worryingly low for the home page.
  • Industry & Direct Competitors: for a news website, a score of 25 might actually be quite good. For a software landing page, a score of 25 might be a disaster. Get to know the norms in your industry, and amongst your direct competitors.

Here are some tips for improving your clarity score:

  • Reduce unnecessary text.
  • Use images. Human perception of clutter is much more forgiving of imagery than of text.
  • Increase the amount of whitespace or padding around content.
  • Use imagery that has less texture and fewer lines.
  • Organize the page into easily distinguishable content blocks.

Back to top

Clarity Map

Below are two examples of Clarity Maps, one with extreme clutter (Chobani, left) and one with less clutter (Sixt, right):

The Clarity Map is based on Visual Clarity data, and this map depicts which content actually contributes to clutter on a particular design.  Areas highlighted in red are contributing to clutter.  If you want to improve clarity on a specific design, this map will help you pinpoint which content could be removed or modified to generate some quick wins.

Clarity is important.  If your content is too cluttered, you may be losing visitor attention.  Cleaner, clearer designs make it easier for customers to find what they're looking for, and reduces their cognitive load.

Here are some tips for reducing clutter:

  • Reduce unnecessary text.
  • Use images. Human perception of clutter is much more forgiving of imagery than of text.
  • Increase the amount of whitespace or padding around content.
  • Use imagery that has less texture and fewer lines.
  • Organize the page into easily distinguishable content blocks.

Back to top

Excitingness Score

The Excitingness Score is an instant design metric based on Emotional Impact data.  It's based on large-scale studies with thousands of human raters, and represents how a large group would judge the excitingness of a design.  It instantly scores a design for excitingness in an objective way, providing a rating between 0 to 100 where 50 represents the average page on the internet.  A score of 0 indicates an extremely calm, or even boring design, whereas a score of 100 means your design is extremely stimulating.  Please note that EyeQuant is strictly evaluating the excitingness of the design only, not the excitingness of your content or marketing.

In the following examples, we can see to extreme examples of Excitingness Scores:

Whether a design has a "good" or "bad" score depends entirely on your offer, brand, industry, and audience. The score will help you understand and quantify exactly how exciting or calm your design really is.
As an example, If you're catering to a young and adventurous audience, a higher Excitingness score could drive significantly more conversions than a lower one.  Conversely, if your audience is more conservative or the product/service you sell requires a high level of trust, a lower score (therefore calmer design) might achieve better results.
This means that unlike with EyeQuant's Visual Clarity Score, not every design should aim to be exciting.
Here are some helpful tips for affecting your Excitingness Score to achieve a desirable result:
  • High quality, large-scale photography that spans across the whole browser window tends to increase both Excitingness and Visual Clarity scores.
  • Tables of any kind tend to lower Excitingness, including pricing tables (!). Remember thought that this isn't a hard encoded rule, as we let the software learn these things itself based on the responses from our human raters.
  • Whitespace tends to lower Excitingness, but can often increase Visual Clarity. There are many examples of designs with both high Excitingness and Clarity that don’t have any whitespace though.
  • Copious amounts of copy are the easiest way to reduce both Excitingness and Clarity. Marketing designs that score highly on both metrics get their message across with very few words.

Back to top
